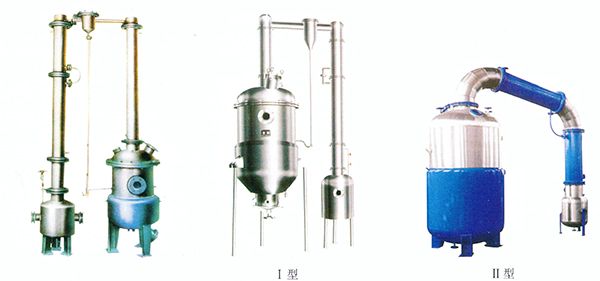

真空减压浓缩罐
Vacuum concentration pot
主要用途：适用于制药、食品、化工等行业对料液的浓缩，蒸发强度一般在50-60Kg/m2h，浓缩液的比重不宜大于1.25, 否则对出料带来困难.
结 构：本设备主要包括浓缩罐、第一冷凝器、汽液分离器、第二冷凝器、冷却器、受液桶六个部件组成，全部由不
锈钢制造。浓缩罐为夹套结构，冷凝器为列管式，冷却器为蛇管式。
Main USES: applicable to the pharmaceutical,food, chemical and other industries to the concentration of the feed liquid, the evaporation strength is in commonly 50 to 60 kg/am2h, concentrate ratio should not be greater than 1.25, otherwise difficult to discharge.
Structure: this equipment is mainly including steam concentrator, the first condenser, separator, the second condenser, cooler, accumulator barrels of six parts, all made by stainless steel. Concentrator is jacketed structure，the condenser is tubular, tubular cooler for snakes.
